title = "Image building"
title = "How to Build an Image for Custom Hardware"
weight = 100
date = "2019-12-03"
lastmod = "2021-05-10"
lastmod = "2024-02-23"
aliases = [
"/old-wiki/Image_building"
]
+++
The process of getting from source code to an image suitable for loading
into a target device with Apertis is a clearly defined multi-step
process. The initial step is to build the source and package the
resulting artefacts into `.deb` packages. For the vast majority of
packages this is already done and provided by Apertis in the [package
repositories](https://repositories.apertis.org/). This page will not
cover this step of the process an will assume all required packages have
been successfully built and are available in the package repositories.
There are two further steps to generating an image:
- Building an Operating System package (OSpack)
- Combining the OSpack with a Hardware package (HWpack) to create an
Both the process of building OSpacks and images from them is carried out
using [Debos](https://github.com/go-debos/debos). It is strongly
recommended to utilise the [appropriate Docker image builder
container](https://gitlab.apertis.org/infrastructure/apertis-image-recipes#building-in-docker)
to perform these steps, though the Apertis SDK image [running in a
VM]( {{< ref "/guides/virtualbox.md" >}} )
can be used with reduced reliability.
# Building OSpacks
The OSpack is a root file system containing all the generic software for
a particular image type and hardware architecture (e.g. the arm
architecture). Apertis provides stock Debos recipes in the form of
`.yaml` files in the
Getting from source code to an image suitable for loading into a target device
is typically a two step process. The first step is creating binary packages and
the second combining them to create an image. A more detailied explanation of
this process is documented in
[the Apertis workflow]( {{< ref "workflow-guide.md" >}} ).
The Apertis project automates the creation of the
[official images]( {{< ref "images.md" >}} ), which are built for the
[reference hardware]( {{< ref "reference_hardware" >}} ) and supported by the
project. Whilst these images may prove enough for early exploration of the
Apertis platform, they are unlikely to be suitable for direct use in a specific
bespoke use case. The automation used to build these images is not currently
available for direct use by unofficial projects on the Apertis infrastructure.
{{% notice tip %}}
If you are in the fortunate position that your target hardware is supported by
Apertis and are just looking to include extra packages already available in
Apertis, then this can be achieved on the Apertis infrastructure and is
documented in
[How to Build Your First Image on Apertis]( {{< ref "how_to_build_your_first_image.md" >}} ).
{{% /notice %}}
It is very likely that as a developer looking at Apertis you have your own
bespoke hardware, a piece of hardware that isn't one of the reference boards or
additional hardware attached that isn't currently supported in the reference
images. In this guide we look at building an Apertis image locally with support
to boot on such a board.
{{% notice info %}}
Whilst this process currently can't be carried out on the Apertis
infrastructure from a basic account. The Apertis project is open to the idea of
creating
[dedicated project areas]( {{< ref "contributions.md#dedicated-project-areas" >}} )
for projects on the Apertis infrastructure which might be able to take
advantage of the Apertis' automation.
{{% /notice %}}
# The Target Hardware
We are going to use a low cost development board that is not currently
supported by Apertis as an example. As the focus of this guide is on the
development workflow, we will pick a board that has reasonable upstream
support, but which will need the configuration of a few packages to be modified
and these packages rebuilt to build an image that will boot. The board chosen
for this is the
[Orange Pi Zero2](http://www.orangepi.org/html/hardWare/computerAndMicrocontrollers/details/Orange-Pi-Zero-2.html).

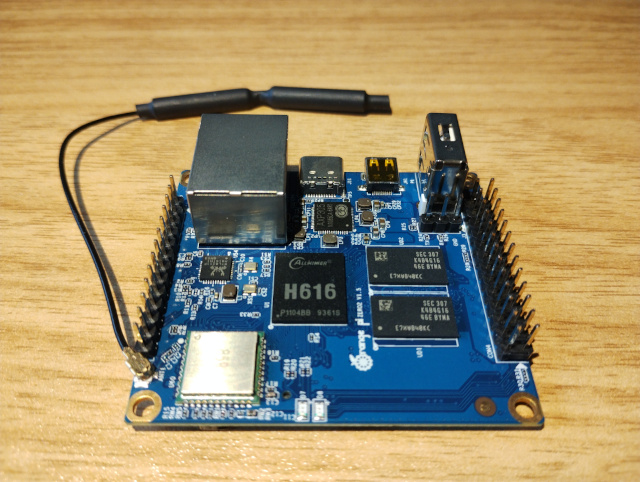

![The Orange Pi Zero2](/images/OrangePiZero2.jpg)
{{% notice info %}}
If you are looking to target a less well supported or custom hardware platform
where you need to add support, there is a
[guide for building, patching and maintaining the Apertis kernel]( {{< ref "buildingpatchingandmaintainingtheapertiskernel.md" >}} )
which provides some guidance on how to approach this.
{{% /notice %}}
# Picking a version of Apertis
It is important to consider which version of Apertis is going to be used. At
any given time, Apertis has an old and new stable release and a version being
actively developed. As this guide is acting as a demonstration and as there'll
be no product release the latest Apertis stable
[release]( {{< ref "release.md" >}} ) will be used, v2023 at time of writing.
{{% notice tip %}}
To make best use of the release support of the Apertis project, developers are
advised to take the
[Apertis release flow]( {{< ref "release-flow.md#apertis-release-flow" >}} )
and [schedule]( {{< ref "releases.md" >}} ) into account when creating a
product release roadmap and to
[pick the branch on which they perform their development]( {{< ref "release-flow.md#guidelines-for-product-development-on-top-of-apertis-and-its-direct-downstreams" >}} )
carefully.
{{% /notice %}}
# Summary of the Required Changes
We will base our initial image on the
[Fixed Function]( {{< ref "images.md#fixedfunction" >}} ) image type, as a nice
small image with which to test booting our desired hardware. Our initial target
will to be to have an image built that can be written to an SD card, which
boots to a login prompt on the serial console. As the Orange Pi Zero2 is an
ARM64 board, Apertis already provides basic support for the architecture,
however there are a few key packages that we'll need to check/modify to
successfully boot:
- Arm Trusted Firmware
- U-Boot
- Linux kernel
As Arm boards don't generally provide a standardised way of booting, with each
vendor of Arm based SoCs having their own requirements to boot, we will need to
create a HWpack in the form of a
[hardware specific Debos recipe]( {{< ref "hwpack-requirements.md#hwpack" >}} )
that can extend and massage the Apertis ARM64
[OSpack]( {{< ref "hwpack-requirements.md#ospack" >}} ) into a form that can
boot.
{{% notice info %}}
We have picked an 64-bit Arm based board due to it being a bit more complex to
boot compared with an 64-bit Intel based board. With that said, it is likely
that any custom board will require some steps to be taken to customise the
boot firmware, kernel and/or image contents. It should also be noted that we
have picked an architecture that is already supported in the Apertis project,
targeting an as yet unsupported architecture would require significantly more
effort and is out of scope for this guide. Please
[contact]( {{< ref "community.md" >}} ) the Apertis developers if you have
requirements that you need help with.
{{% /notice %}}
# Download and Setup a Devroot
We are going to be downloading the git source trees for packages we need to
modify and buildng them locally. To do this we need a suitable toolchain and
environment to perform these builds. Whilst a lot of packages can be
successfully built with a cross compiler tool chain, there are others that
can't be easily setup to do this. Apertis provides
[Devroots]( {{< ref "sysroots-and-devroots.md#devroot" >}} ) to act as a build
environment, enabling packages to be built as though they are being built on a
machine of the target architecture.
The process for setting up a devroot is documented in
[Development containers using devroot-enter]( {{< ref "tooling.md#development-containers-using-devroot-enter" >}} ).
Download the latest v2023 ARM 64-bit devroot, install it and spawn a devroot
container.
# Building Arm Trusted Firmware
Looking at the
[documentation for building U-Boot for the Allwinner Arm SoCs](https://gitlab.apertis.org/pkg/u-boot/-/blob/apertis/v2023/doc/board/allwinner/sunxi.rst),
we can see that Arm Trusted Firmware (ATF) is a dependency for building U-Boot, so
we'll start with that.
The Apertis project already has a
[repository for the Arm trusted Firmware](https://gitlab.apertis.org/pkg/arm-trusted-firmware),
we can clone that repsoitory locally:
```
$ git clone https://gitlab.apertis.org/pkg/arm-trusted-firmware.git
$ cd arm-trusted-firmware
```
In order to make it a little easier to track changes made here and updates made
by the Apertis project to ATF over time (allowing easier updating in the
future) we will create a branch under a distinct project name. For example if
we use "orange" as our project name, we will create an `orange/v2023` branch
from the `apertis/v2023` branch:
```
$ git checkout -b orange/v2023 apertis/v2023
```
{{% notice note %}}
We will also be using this project name as a suffix to the version number when
creating our customised "downstream" packages.
{{% /notice %}}
Looking at the
[hardware documentation](http://www.orangepi.org/html/hardWare/computerAndMicrocontrollers/details/Orange-Pi-Zero-2.html)
we can see that the device has the Allwinner H616 CPU. The
[U-Boot documentation](https://gitlab.apertis.org/pkg/u-boot/-/blob/apertis/v2023/doc/board/allwinner/sunxi.rst)
helpfully tells us for this SoC we need to build ATF for the `sun50i_h616`
platform.
[Looking in `debian/rules`](https://gitlab.apertis.org/pkg/arm-trusted-firmware/-/blob/apertis/v2023/debian/rules)
we find a list of platforms that the package is built for, so we add `sun50i_h616` to this:
```diff
--- a/debian/rules
+++ b/debian/rules
@@ -14,7 +14,7 @@
VERBOSE=1
endif
-platforms := g12a gxbb sun50i_a64 sun50i_h6 rk3328 rk3399 rpi3 rpi4 imx8mn k3
+platforms := g12a gxbb sun50i_a64 sun50i_h6 sun50i_h616 rk3328 rk3399 rpi3 rpi4 imx8mn k3
platforms_nodebug := imx8mq
# By default, iMX8MN uses UART2 console. However, other boards supported
```
Commit this change:
```
$ git commit -s -m "Add sun50i_h616 to build platforms" debian/rules
```
We should also create a changelog entry for a new release and commit it:
```
$ gbp dch --git-author --ignore-branch -l orange -R
$ DEBIAN_PACKAGE=$(dpkg-parsechangelog -S Source)
$ DEBIAN_VERSION=$(dpkg-parsechangelog -S Version)
$ git commit -s -m "Release ${DEBIAN_PACKAGE} version ${DEBIAN_VERSION}" debian/changelog
```
{{% notice info %}}
Note that we pass `-l orange` when calling `gbp dch`. This uses `orange` as a
suffix for a local "downstream" revision of the Apertis package. See our
documentation on [versioning]( {{< ref "versioning.md" >}} ) for more details.
{{% /notice %}}
We will now build it locally, using the devroot that we setup earlier. First
enter the devroot and find the source tree, the `devroot_enter` command will
automatically bind the user's home directory:
```
$ devroot-enter ${DEVROOT_PATH}
...
user@devroot:/tmp$ cd ${ATF_SOURCE_PATH}
user@devroot:/home/user/arm-trusted-firmware$
```
In order to build ATF successfully, we need to install it's build dependencies.
We will also install
[`git-buildpackage`](https://manpages.debian.org/bookworm/git-buildpackage/git-buildpackage.1.en.html)
which is a useful tool to help with building debian packages:
```
user@devroot:/home/user/arm-trusted-firmware$ sudo apt update
...
user@devroot:/home/user/arm-trusted-firmware$ sudo apt build-dep arm-trusted-firmware
...
user@devroot:/home/user/arm-trusted-firmware$ sudo apt install git-buildpackage
...
user@devroot:/home/user/arm-trusted-firmware$
```
We can then use `git-buildpackage` to build ATF:
```
user@devroot:/home/user/arm-trusted-firmware$ gbp buildpackage --git-ignore-branch -a arm64 -B -d -uc -us
```
In order for the U-Boot build to use the binaries in the package of ATF that
was just built, we must install the new package in the devroot:
```
user@devroot:/home/user/arm-trusted-firmware$ cd ..
user@devroot:/home/user$ sudo dpkg -i arm-trusted-firmware_*_arm64.deb
(Reading database ... 31313 files and directories currently installed.)
Preparing to unpack arm-trusted-firmware_2.7.0+dfsg-2+apertis3orange1_arm64.deb ...
Unpacking arm-trusted-firmware (2.7.0+dfsg-2+apertis3orange1) over (2.7.0+dfsg-2+apertis3bv2023preb1) ...
Setting up arm-trusted-firmware (2.7.0+dfsg-2+apertis3orange1) ...
user@devroot:/home/user$
```
We will now have the required binary available:
```
user@devroot:/home/user$ ls /usr/lib/arm-trusted-firmware/sun50i_h616/
bl31.bin
user@devroot:/home/user$
```
# Building U-Boot
Now that we have the required ATF binaries we can modify U-Boot to build for our board. Start by cloning the [Apertis U-Boot repository](https://gitlab.apertis.org/pkg/u-boot) (as we did with ATF) and creating a downstream project branch:
```
$ git clone https://gitlab.apertis.org/pkg/u-boot.git
$ cd u-boot
$ git checkout -b orange/v2023 apertis/v2023
```
Like with ATF, we need to update the package configuration to build for the Orange Pi Zero2. The U-Boot package builds for a lot of different boards already, with the configuration for these split out from `debian/rules` into `debian/targets/mk`. To add the Pi Zero, we add the following entries to this file:
```diff
--- a/debian/targets.mk
+++ b/debian/targets.mk
@@ -263,6 +263,11 @@
spl/sunxi-spl.bin u-boot-nodtb.bin u-boot-sunxi-with-spl.fit.itb \
u-boot.bin uboot.elf
+ # External Developer <external.developer@collabora.com>
+ u-boot-sunxi_platforms += orangepi_zero2
+ orangepi_zero2_assigns := BL31=/usr/lib/arm-trusted-firmware/sun50i_h616/bl31.bin
+ orangepi_zero2_targets := u-boot-sunxi-with-spl.bin uboot.elf
+
# Frederic Danis <frederic.danis@collabora.com>
u-boot-sunxi_platforms += orangepi_zero_plus2
orangepi_zero_plus2_assigns := BL31=/usr/lib/arm-trusted-firmware/sun50i_a64/bl31.bin
```
Commit this change, create a changelog entry for a new release and commit that too:
```
$ git commit -s -m "Add Orange Pi Zero2 to built platforms" debian/targets.mk
$ gbp dch --git-author --ignore-branch -l orange -R
$ DEBIAN_PACKAGE=$(dpkg-parsechangelog -S Source)
$ DEBIAN_VERSION=$(dpkg-parsechangelog -S Version)
$ git commit -s -m "Release ${DEBIAN_PACKAGE} version ${DEBIAN_VERSION}" debian/changelog
```
As with building ATF we need to ensure that all required dependencies are
install in the devroot:
```
user@devroot:/home/user/u-boot$ sudo apt build-dep u-boot
```
The U-Boot package will build U-Boot for numerous target devices, which takes a
long time. We can limit the number of devices it's going to build for by
setting `DEB_BUILD_PROFILES` in the environment prior to running `gbp
buildpackage`. Here we limit building to just the target we are interested in:
```
user@devroot:/home/user/u-boot$ export DEB_BUILD_PROFILES=pkg.uboot.platform.orangepi_zero2
user@devroot:/home/user/u-boot$ gbp buildpackage --git-ignore-branch -a arm64 -B -d -uc -us
...
```
This generates a bunch of U-Boot binary packages in the parent directory,
including one for `sunxi` based devices such as the Orange Pi Zero2:
```
user@devroot:/home/user/u-boot$ ls ../u-boot-sunxi*.deb
../u-boot-sunxi_2023.01+dfsg-1+apertis6orange1_arm64.deb
```
# Checking kernel
Downloading the current Apertis kernel and extract it (it is easy to do this
in the devroot), we find that it already ships the device tree for the OrangePi
Zero2:
```
user@devroot:/home/user$ apt download "linux-image-*-arm64"
Get:1 https://repositories.apertis.org/apertis v2023/target arm64 linux-image-6.1.0-7-arm64 arm64 6.1.20-1+apertis4~v2023bv2023.0db1 [60.3 MB]
Fetched 60.3 MB in 13s (4580 kB/s)
user@devroot:/home/user$ dpkg -X linux-image-*.deb linux-deb
./
./boot/
...
./usr/share/lintian/overrides/
./usr/share/lintian/overrides/linux-image-6.1.0-7-arm64
user@devroot:/home/user$ ls linux-deb/boot/dtbs/6.1.0-7-arm64/allwinner/*zero2*
linux-deb/boot/dtbs/6.1.0-7-arm64/allwinner/sun50i-h616-orangepi-zero2.dtb
```
A quick look at the config used to build it also suggests it's been built with support for the H616, so we'll assume for now that the Apertis kernel is ready to boot on the OrangePi Zero2:
```
user@devroot:/home/user$ grep H616 linux-deb/boot/config-6.1.0-7-arm64
CONFIG_PINCTRL_SUN50I_H616=y
CONFIG_PINCTRL_SUN50I_H616_R=y
CONFIG_SUN50I_H616_CCU=y
```
# Image scripts
The Apertis images are assembled using
[Debos](https://github.com/go-debos/debos) in a
[multi-stage process]( {{< ref "workflow-guide.md" >}} ). Debos uses
[YAML](https://en.wikipedia.org/wiki/YAML) based configuration files, each
stage is configured by it's own configuration file and these files are usually
stored in the
[apertis-image-recipes](https://gitlab.apertis.org/infrastructure/apertis-image-recipes)
gitlab repository, with a name of the form `apertis-ospack-*.yaml`, each
one providing a different balance of packages for different tasks.
repository.
To build an image, the first stage is to build an
[OSpack]( {{< ref "hwpack-requirements.md#ospack" >}} ) (the rootfs without the
basic hardware-specific components like bootloader, kernel and
hardware-specific support libraries) which tends to be a common artifact used
between boards with the same architecture, this is then enhanced for a specific
device or use case by a [HWpack]( {{< ref "hwpack-requirements.md#hwpack" >}} ).
Clone the `apertis-image-recipes` repository as with previous repositories and
create a downstream project branch:
```
$ git clone https://gitlab.apertis.org/infrastructure/apertis-image-recipes.git
$ cd apertis-image-recipes
$ git checkout -b orange/v2023 apertis/v2023
```
It is best to build these packages images from the appropriate
image-builder docker container. This is documented in the
apertis-image-recipes
## Building an OSpack
As previously mentioned, the aim is to build a `fixedfunction` image, to do
this we start by building the appropriate OSpack (`ospack-fixedfunction.yaml`).
It is best to build these images from the appropriate `image-builder` docker
container, as documented in the `apertis-image-recipes`
[README.md](https://gitlab.apertis.org/infrastructure/apertis-image-recipes#building-in-docker).
```
$ RELEASE=v2023
$ docker run \
-i -t --rm \
-w /recipes \
-v $(pwd):/recipes \
--security-opt label=disable \
-u $(id -u):$(id -g) \
--group-add=$(getent group kvm | cut -d : -f 3) \
--device /dev/kvm \
--cap-add=SYS_PTRACE \
--tmpfs /scratch:exec \
registry.gitlab.apertis.org/infrastructure/apertis-docker-images/$RELEASE-image-builder \
debos ospack-fixedfunction.yaml -t suite:$RELEASE -t architecture:arm64
```
# Building an image with a HWpack
Unlike the OSpack, that is generic, the HWpack contains the bits needed
to boot on a specific target. The HWpack configuration typically
extracts an OSpack, creates an image containing the required partition
layout for the specific hardware, writes the extracted OSpack into it,
adds extra components necessary for the target and may perform some
tweaks to the image (tweaking configuration files etc). Finally the
image is compressed to minimise storage space.
Existing Apertis examples can be found in the [Apertis Image Recipes
repository](https://gitlab.apertis.org/infrastructure/apertis-image-recipes)
called `apertis-image-*.yaml`. The Debos documentation also provides a
[simple example](https://github.com/go-debos/debos#simple-example).
## Image creation
Image creation is the point where a set of standard packages are combined to
build a solution for a specific use case. This goal is accomplish thanks to
[Debos](https://github.com/go-debos/debos), a flexible tool to configure the
build of Debian-based operating systems. Debos uses tools like `debootstrap`
already present in the environment and relies on virtualisation to securely do
privileged operations without requiring root access.
Ospacks and how they should be processed to generate images are defined through
YAML files.
This is an example configuration for an ARMv7 image, `image-armhf.yaml`:
``` yaml
architecture: armhf
actions:
- action: unpack
file: ospack-armhf.tar.gz
compression: gz
- action: apt
description: Install hardware support packages
recommends: false
packages:
- linux-image-4.9.0-0.bpo.2-armmp-unsigned
- u-boot-common
- action: image-partition
imagename: "apertis-armhf.img"
imagesize: 4G
partitiontype: gpt
mountpoints:
- mountpoint: /
partition: root
flags: [ boot ]
partitions:
- name: root
fs: ext4
start: 0%
end: 100%
- action: filesystem-deploy
description: Deploy the filesystem onto the image
- action: run
chroot: true
command: update-u-boot
- action: run
description: Create bmap file
postprocess: true
command: bmaptool create apertis-armhf.img > apertis-armhf.img.bmap
- action: run
description: Compress image file
postprocess: true
command: gzip -f apertis-armhf.img
```
And this is the `ospack-armhf.yaml` configuration for the ARMv7 ospack:
``` yaml
architecture: armhf
actions:
- action: debootstrap
suite: "17.06"
keyring-package: apertis-archive-keyring
components:
- target
mirror: https://repositories.apertis.org/apertis
variant: minbase
- action: apt
description: Install basic packages
packages: [ procps, sudo, openssh-server, adduser ]
- action: run
description: Setup user account
chroot: true
script: setup-user.sh
- action: run
description: Configure the hostname
chroot: true
command: echo apertis > /etc/hostname
- action: overlay
description: Overlay systemd-networkd configuration
source: networkd
- action: run
description: Configure network services
chroot: true
script: setup-networking.sh
- action: pack
compression: gz
file: ospack-armhf.tar.gz
```
Additionally at this stage customizations can be applied by using overlays.
This process allows the default content of packages to be combined with
custom modifications to provide the desired solution. A common case is to apply
overlays to change some default system settings found in `/etc` such as default
hostname or default package configuration.
As an example of this mechanism, the following section is used to customize the
behaviour of `dpkg`
``` yaml
- action: overlay
source: overlays/dpkg-exclusions
```
Thanks to this action, the contents of the `overlays/dpkg-exclusions`
directory will be applied to the image, which in this case consist of
the file:
etc/dpkg/dpkg.cfg.d/apertis-exclusions
This file will be added to the rootfs, which in this instance will change
the default behaviour of dpkg to suit the needs of the image
Collections of images are built every night and published on the
[deployable image hosting website](https://images.apertis.org), such that
developers can always download the latest image to deploy it to a target device
and start using it immediately.
HWpacks are typically hardware specific and as Apertis doesn't currently
support the Orange Pi Zero2, a new HWpack will need to be created. The main
differentiator which requires different HWpacks is the firmware that needs to
be loaded to boot the device and where.
We create a recipe for debos to perform the steps required to make a bootable
image. We can base this on an existing recipe. In this instance we have based
it on `image-rk3399.yaml` and made the following changes:
```diff
--- image-rk3399.yaml 2023-06-22 12:01:06.974489949 +0100
+++ image-h616.yaml 2024-02-23 14:23:43.067319370 +0000
@@ -2,7 +2,7 @@
{{ $type := or .type "fixedfunction" }}
{{ $suite := or .suite "v2023" }}
{{ $ospack := or .ospack (printf "ospack_%s-%s-%s" $suite $architecture $type) }}
-{{ $sbc := or .sbc "rock-pi-4-rk3399" }}
+{{ $sbc := or .sbc "orangepi_zero2" }}
{{ $image := or .image (printf "apertis-%s-%s-%s-%s" $suite $type $architecture $sbc) }}
{{ $cmdline := or .cmdline "rootwait rw quiet splash plymouth.ignore-serial-consoles fsck.mode=auto fsck.repair=yes" }}
@@ -31,7 +31,7 @@
{{ else }}
imagesize: 15G
{{ end }}
- partitiontype: gpt
+ partitiontype: msdos
mountpoints:
- mountpoint: /
@@ -103,22 +103,25 @@
- linux-image-{{$architecture}}
{{ end }}
- - action: apt
- description: U-Boot package
- packages:
- - u-boot-rockchip
+ - action: overlay
+ description: Add local debs
+ source: overlays/local-debs
- - action: raw
- description: Install loader1 for {{ $sbc }}
- origin: filesystem
- source: /usr/lib/u-boot/{{ $sbc }}/idbloader.img
- offset: {{ sector 64 }}
+ - action: run
+ description: Install local debs
+ chroot: true
+ command: dpkg -i /home/user/*.deb
+
+ - action: run
+ description: Remove local debs
+ chroot: true
+ command: rm /home/user/*.deb
- action: raw
description: Install U-Boot for {{ $sbc }}
origin: filesystem
- source: /usr/lib/u-boot/{{ $sbc }}/u-boot.itb
- offset: {{ sector 16384 }}
+ source: /usr/lib/u-boot/{{ $sbc }}/u-boot-sunxi-with-spl.bin
+ offset: {{ sector 16 }}
- action: run
description: Switch to live APT repos
```
Going through these changes one at a time:
```diff
-{{ $sbc := or .sbc "rock-pi-4-rk3399" }}
+{{ $sbc := or .sbc "orangepi_zero2" }}
```
A fairly obvious change, we switch the name of the sbc from `rock-pi-4-rk3399`
to `orangepi_zero2`. Note however that the name chosen is the name used in the
U-Boot packaging (it's used later in the script as a directory name).
```diff
- partitiontype: gpt
+ partitiontype: msdos
```
Looking at the [documentation](https://linux-sunxi.org/U-Boot#Install_U-Boot)
we need to copy the `u-boot-sunxi-with-spl.bin` binary we built to 8MB into the
boot device. With 512B sectors, this is at sector 16.
Since sector 16 is within the gpt partition space, we will instead utilise a
msdos partition table.
```diff
- - action: apt
- description: U-Boot package
- packages:
- - u-boot-rockchip
+ - action: overlay
+ description: Add local debs
+ source: overlays/local-debs
- - action: raw
- description: Install loader1 for {{ $sbc }}
- origin: filesystem
- source: /usr/lib/u-boot/{{ $sbc }}/idbloader.img
- offset: {{ sector 64 }}
+ - action: run
+ description: Install local debs
+ chroot: true
+ command: dpkg -i /home/user/*.deb
+
+ - action: run
+ description: Remove local debs
+ chroot: true
+ command: rm /home/user/*.deb
```
The rk3399 is an officially supported board and the offical Apertis U-Boot
build is used. The Orange Pi Zero2 build has required us build a
U-Boot package locally, so instead of installing a U-Boot package from the Apertis
repositories, we need to :
- Add an overlay holding the binary U-Boot package,
- Install these binary packages using `dpkg` when building the image,
- Delete the binary packages from the image.
In addition to the changes in the recipe, the U-Boot package
`u-boot-sunxi_2023.01+dfsg-1+apertis6orange1_arm64.deb` has been copied to a
new [overlay]( {{< ref "image_building.md#image-creation" >}} ) in the local
repository:
```
$ mkdir -p overlays/local-debs/home/user
$ cp ../u-boot-sunxi*.deb overlays/local-debs/home/user/
```
Additionally from the above patch segment (and the one below) we can see that
rockchip installs 2 pieces of firmware at different offsets. With the Orange Pi
Zero2 we only install one and thus one of these actions gets removed.
```diff
- action: raw
description: Install U-Boot for {{ $sbc }}
origin: filesystem
- source: /usr/lib/u-boot/{{ $sbc }}/u-boot.itb
- offset: {{ sector 16384 }}
+ source: /usr/lib/u-boot/{{ $sbc }}/u-boot-sunxi-with-spl.bin
+ offset: {{ sector 16 }}
```
Lastly we have the step where the U-Boot binary is written to the required
offset in the image. We are simply modifying this section to use the desired
binary (`/usr/lib/u-boot/orangepi_zero2/u-boot-sunxi-with-spl.bin`, provided by
the `u-boot-sunxi` package) and write it to the required offset (`sector 16`,
which is an 8MB offset).
We can now build the final image, again using the appropriate `image-builder`
docker container:
```
$ RELEASE=v2023
$ docker run \
-i -t --rm \
-w /recipes \
-v $(pwd):/recipes \
--security-opt label=disable \
-u $(id -u):$(id -g) \
--group-add=$(getent group kvm | cut -d : -f 3) \
--device /dev/kvm \
--cap-add=SYS_PTRACE \
--tmpfs /scratch:exec \
registry.gitlab.apertis.org/infrastructure/apertis-docker-images/$RELEASE-image-builder \
debos image-h616.yaml -t suite:$RELEASE -t architecture:arm64
```
# Installing the image on an SD card
The standard Debos recipes, on which we have based the recipe for H616 image
creation, create ancillary files when generating the image to allow images to
be quickly written on to SD cards and alike using
[`bmaptool`](https://github.com/intel/bmap-tools).
The image writing process is quite simple as the Debos scripts have already
generated the image with the required partitions and firmware installed as
required so that the image can just be written to the beginning of the SD card:
$ sudo bmaptool copy apertis-v2023-fixedfunction-arm64-orangepi_zero2.img.gz $sdcard
{{% notice warning %}}
Make sure to set `$sdcard` to the device file of the SD card.
{{% /notice %}}
Insert the SD card into the board, [attach the serial
console](https://linux-sunxi.org/Xunlong_Orange_Pi_Zero2#Serial_port) cable and
power supply and boot:
```
U-Boot SPL 2023.01+dfsg-1+apertis6orange1 (Jun 12 2023 - 17:51:06 +0000)
DRAM: 1024 MiB
Trying to boot from MMC1
NOTICE: BL31: v2.7(debug):apertis/2.7.0+dfsg-2+apertis3-2-g6830268
NOTICE: BL31: Built : 16:00:31, Jun 13 2023
NOTICE: BL31: Detected Allwinner H616 SoC (1823)
NOTICE: BL31: Found U-Boot DTB at 0x4a0923e8, model: OrangePi Zero2
INFO: ARM GICv2 driver initialized
INFO: Configuring SPC Controller
INFO: PMIC: Probing AXP305 on RSB
INFO: PMIC: aldo1 voltage: 3.300V
INFO: PMIC: aldo2 voltage: 3.300V
INFO: PMIC: aldo3 voltage: 3.300V
INFO: PMIC: bldo1 voltage: 1.800V
INFO: PMIC: dcdcd voltage: 1.500V
INFO: PMIC: dcdce voltage: 3.300V
INFO: BL31: Platform setup done
INFO: BL31: Initializing runtime services
INFO: BL31: cortex_a53: CPU workaround for 855873 was applied
INFO: BL31: cortex_a53: CPU workaround for 1530924 was applied
INFO: PSCI: Suspend is unavailable
INFO: BL31: Preparing for EL3 exit to normal world
INFO: Entry point address = 0x4a000000
INFO: SPSR = 0x3c9
INFO: Changed devicetree.
U-Boot 2023.01+dfsg-1+apertis6orange1 (Jun 12 2023 - 17:51:06 +0000) Allwinner Technology
CPU: Allwinner H616 (SUN50I)
Model: OrangePi Zero2
DRAM: 1 GiB
Core: 48 devices, 18 uclasses, devicetree: separate
WDT: Not starting watchdog@30090a0
MMC: mmc@4020000: 0
Loading Environment from FAT... Unable to use mmc 0:1...
In: serial@5000000
Out: serial@5000000
Err: serial@5000000
Net: eth0: ethernet@5020000
Hit any key to stop autoboot: 0
switch to partitions #0, OK
mmc0 is current device
Scanning mmc 0:1...
Found /extlinux/extlinux.conf
Retrieving file: /extlinux/extlinux.conf
U-Boot menu
1: Apertis v2023 6.1.0-0.deb11.13-arm64
2: Apertis v2023 6.1.0-0.deb11.13-arm64 (rescue target)
Enter choice: 1: Apertis v2023 6.1.0-0.deb11.13-arm64
Retrieving file: /initrd.img-6.1.0-0.deb11.13-arm64
Retrieving file: /vmlinuz-6.1.0-0.deb11.13-arm64
append: root=UUID=208a5921-308d-4b07-b953-ef916f2f6da9 rootwait rw quiet splash plymouth.ignore-serial-consoles fsck.mode=auto fsck.repair=yes
Retrieving file: /dtbs/6.1.0-0.deb11.13-arm64/allwinner/sun50i-h616-orangepi-zero2.dtb
Moving Image from 0x40080000 to 0x40200000, end=42120000
## Flattened Device Tree blob at 4fa00000
Booting using the fdt blob at 0x4fa00000
Working FDT set to 4fa00000
Loading Ramdisk to 48054000, end 49fff45c ... OK
Loading Device Tree to 000000004804d000, end 00000000480530d0 ... OK
Working FDT set to 4804d000
Starting kernel ...
Apertis v2023 apertis ttyS0
apertis login:
```
static/images/OrangePiZero2.jpg 0 → 100644
+ 0
− 0
View file @ 41add2a5
static/images/OrangePiZero2.jpg

162 KiB

0% or .
You are about to add 0 people to the discussion. Proceed with caution.
Finish editing this message first!
Please register or to comment
Apertis Website Terms of Use Privacy Policy
