Remove webkit-resource-optimization document

This page documents an investigation that was carried out looking at
MxLauncher. This is no longer a part of Apertis and has limited
applicability to WebKit that replaced it. Remove it.

Signed-off-by: Martyn Welch <martyn.welch@collabora.com>

content/docs/webkit-resource-optimization-on-arm.md

-+++
-date = "2015-09-08"
-weight = 100
-
-title = "Webkit Resource Optimization on ARM"
-
-aliases = [
-    "/docs/webkit-resource-optimization-on-arm-f.wkt.8.md",
-    "/old-wiki/Docs/webkit-resource-optimization-on-arm-f.wkt.8",
-    "/old-wiki/Docs/webkit-resource-optimization-on-arm"
-]
-+++
-
-# Overview of memory allocation
-
-What follows is an analysis of the heap allocation pattern for a few
-pages containing different kinds of contents, obtained using Valgrind's
-massif tool. MxLauncher was modified to wait for the page to load, then
-wait 5 seconds, then quit. The base command line used for obtaining the
-measurements follows:
-
-> valgrind --smc-check=all --threshold=0.1 --alloc-fn='g_malloc'
-> --alloc-fn='g_malloc0' --alloc-fn='g_realloc'
-> --alloc-fn='g_slice_alloc' --alloc-fn='g_slice_alloc0'
-> --alloc-fn='slab_allocator_alloc_chunk' --alloc-fn='alloc_small'
-> --alloc-fn='ralloc_size' --alloc-fn='resize'
-> --alloc-fn='ra_alloc_reg_set' --alloc-fn='alloc_texmat_data'
-> --alloc-fn='alloc_texgen_data' --alloc-fn='ft_mem_qalloc'
-> --alloc-fn='_mesa_align_malloc'
-> --alloc-fn='_mesa_vector4f_alloc'
-> --alloc-fn='_mesa_align_calloc' --alloc-fn='_tnl_init_vertices'
-> --alloc-fn='rzalloc_size' --alloc-fn='WTF::fastMalloc(unsigned long)'
-> --alloc-fn='WTF::fastZeroedMalloc(unsigned long)'
-> --alloc-fn='WTF::tryFastMalloc(unsigned long)'
-> --alloc-fn='WTF::fastRealloc(void\*, unsigned long)'
-> --alloc-fn='WTF::VectorBufferBase<char>::allocateBuffer(unsigned
-> long)' --alloc-fn='WTF::Vector\<char, unsigned
-> long\>::expandCapacity(unsigned long)'
-> --alloc-fn='WTF::VectorBufferBase<JSC::ValueProfile>::allocateBuffer(unsigned
-> long)' --alloc-fn='JSC::CodeBlock::operator new(unsigned long)'
-> --alloc-fn='_default_mem_new_block' --tool=massif
-> ./Programs/MxLauncher <url>
-
-## Simple page
-

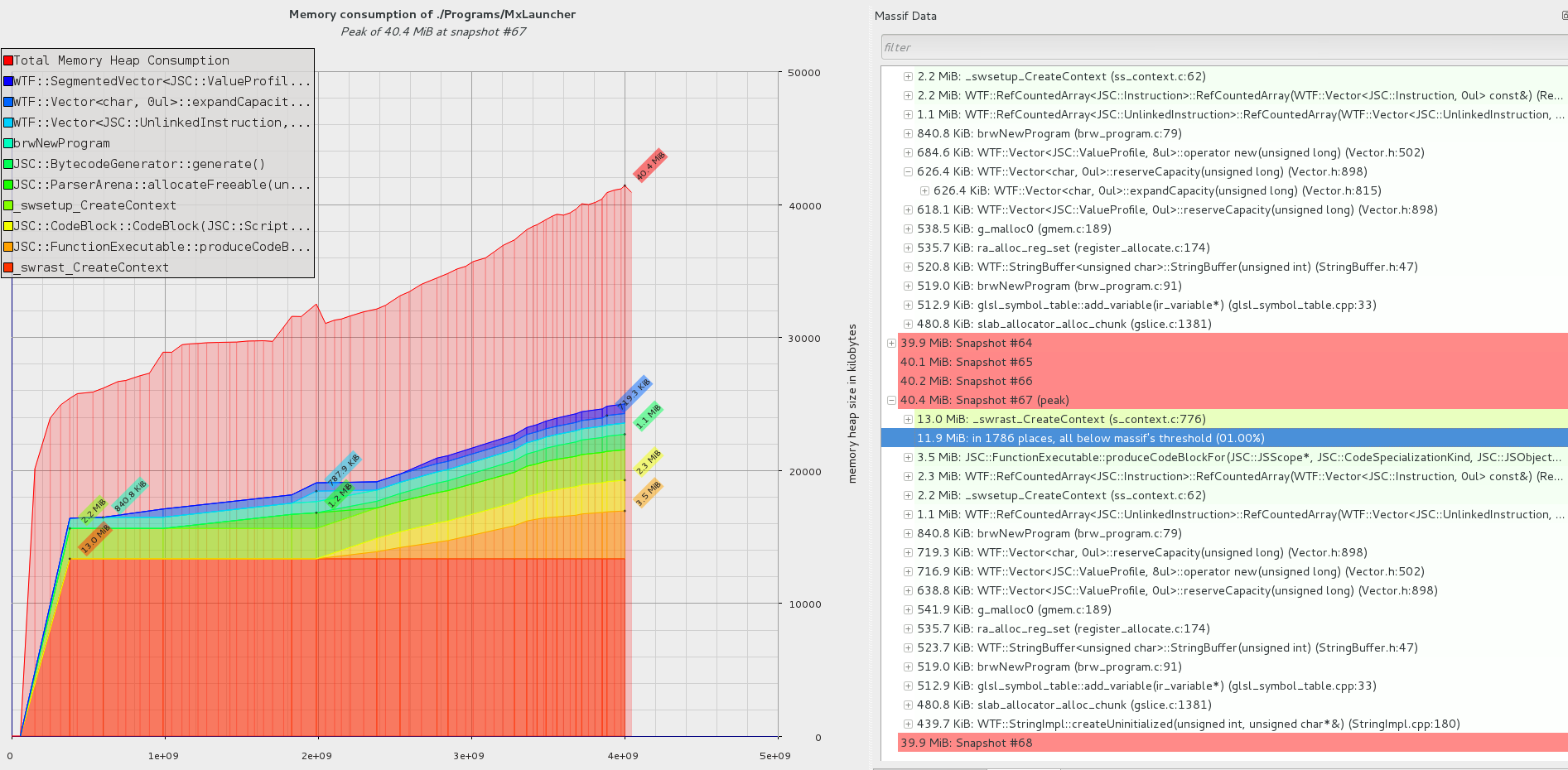

-![<File:Overview-google.png>](/images/overview-google.png)
-
-This is a reading of the memory allocation for the test browser when
-loading Google's main page, which is a relatively simple page. The big
-red rectangle at the bottom, taking up 13MB of memory, is allocated very
-early in the process lifetime. That is the GL context allocation
-performed by cogl at startup. That allocation happens very early and
-remains the same throughout the program's execution, not being affected
-by the creation of the WebView actor and its sub-actors (such as the
-tiles for the backing store), which means the GL stack probably
-pre-allocates a larger amount of memory than strictly necessary and then
-hands out that memory as needed. In addition to those 13MB, about 3MB
-more are also associated with internal memory used by the GL stack,
-coming from the _swsetup_CreateContext and brwNewProgram functions.
-The allocation does not seem excessive and this is outside of WebKit
-Clutter's control. However, tuning the GL stack might be worthy
-investigating in future performance research.
-
-With the GL stack out of the way, the second biggest user of memory is
-WebKit through its WTF and JSC codebases. Web Template Framework (WTF)
-is the basic library - analogous to stdc++ - used by other parts of
-WebKit. It contains classes to deal with strings, hash tables, sets and
-maps, vectors, threading, reference counting and so on. JSC is the
-JavaScript engine. Google's main page is fairly simple but includes a
-non-trivial amount of JavaScript code - over 540KB. About 8MB of memory
-were allocated to parse the HTML/CSS/JS data and to execute the JS code.
-This part of the code has seen several iterations of memory profiling
-and improvement by Apple and other WebKit contributors, in particular to
-make it more suitable for their mobile products, so low hanging fruits
-are very unlikely to be found here.
-
-The light red that goes on top of the graph represents over-allocation
-done by the memory allocation functions. It is very common to have
-memory allocation functions ask the operating system for a much larger
-memory chunk than the one requested by the API user, and hand it out
-over as the API user asks for more. That is a common optimization with
-two main goals: to avoid memory fragmentation, making the application's
-usage pattern more CPU cache-friendly, and to reduce the number of
-system calls performed by the application. System calls are usually very
-expensive, since they require context switches to and from kernel space,
-so this is a common optimization found in pretty much all operating
-systems and basic system libraries.
-
-## Google Images
-

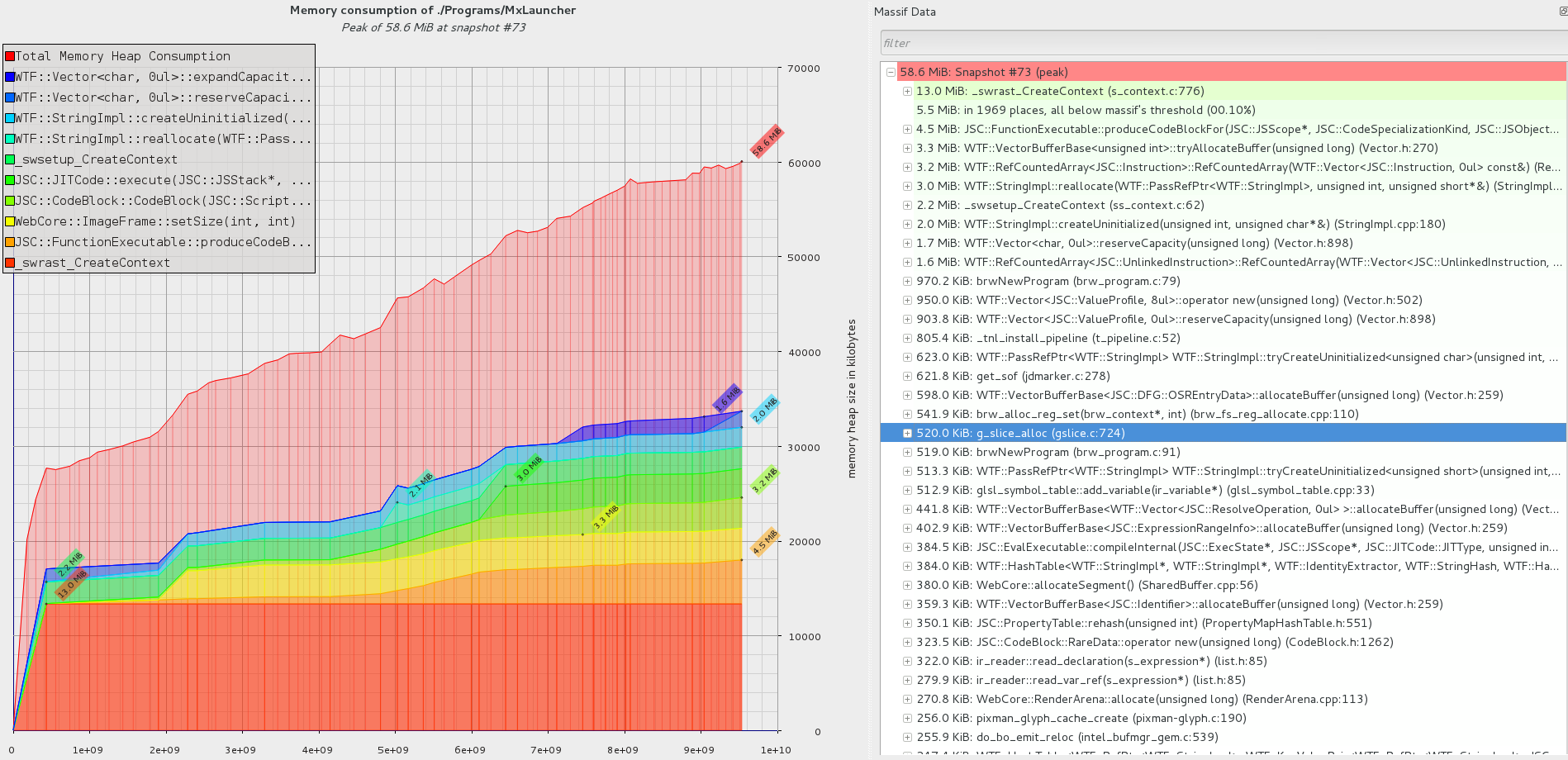

-![<File:Google-images.png>](/images/google-images.png)
-
-This is a reading of the test browser loading
-\[<http://images.google.com/search?hl=en&site=&tbm=isch&source=hp&biw=1920&bih=975&q=gnome&oq=gnome&gs_l=img.3>..0l10.2656.2992.0.3167.5.5.0.0.0.0.110.110.0j1.1.0...0.0...1ac.1.8.img.RYGIbdAY7fw|this
-image search\]. The overall memory allocation looks very similar to the
-simple page case. There are two interesting changes, though. This time
-we can see the JSC JIT showing up in our graph - using roughly 3MB,
-indicating some of the JS code in this page is executed many times,
-causing JSC to consider it a hot path and worthy of being compiled. The
-second, and expected, change is the presence of
-WebCore::ImageFrame::setSize(), used by the image decoding/rendering
-code in WebKit to create and expand the buffer used to hold image data.
-There are several images in this page, so that is expected. The
-allocated memory does not seem to be excessive.
-
-## HTML5 video
-

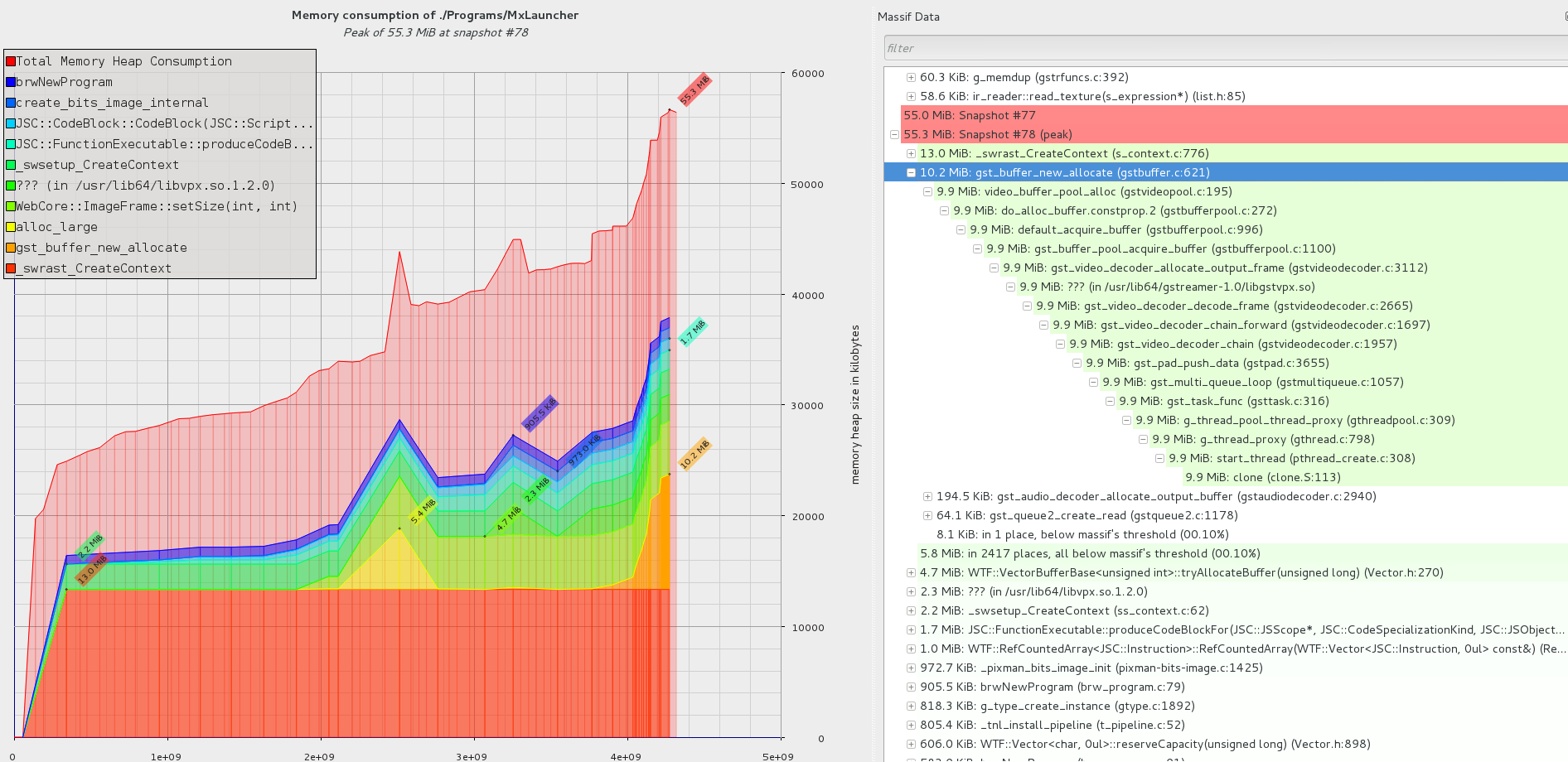

-![<File:Paused-video.png>](/images/paused-video.png)
-
-This reading comes from loading [this blog
-post](http://jeff.ecchi.ca/blog/2013/04/03/gstreamer-hackfest-2013-moving-images/).
-Notice there is an HTML5 video tag in this post, but the video is *not*
-playing. Furthermore, the video tag has the preload attribute set to
-*none*. That means video should not start downloading before the play
-button is pressed. What we see, though, is that GStreamer does start
-preloading the video: the orange area of the graph showing a 10MB
-allocation comes from GStreamer allocating buffers for video data it is
-downloading.
-
-That is [bug in the GStreamer HTML5 implementation of the preload
-attribute](https://bugs.webkit.org/show_bug.cgi?id=114357%7Ca), even
-though the preload attribute is [to be a hint that may be ignored by
-user
-agents](http://dev.w3.org/html5/spec-author-view/video.html#attr-media-preload%7Cconsidered)
-according to the specification. For Apertis it is probably a good idea
-to ignore preload completely but do the opposite of what is currently
-being done, i.e., never preload.
-
-One more thing of note in this graph is the yellow spike. That is caused
-by the JPEG decoder allocating memory to decode and render the JPEG
-image the blog post uses as the poster for the video tag. That memory is
-quickly reclaimed so it is not something to worry about. The decoded
-image, however, may be cached for a long time, to make repainting less
-costly. That cache and the trade-offs involved will be discussed later
-in this document.
-
-## WebGL
-

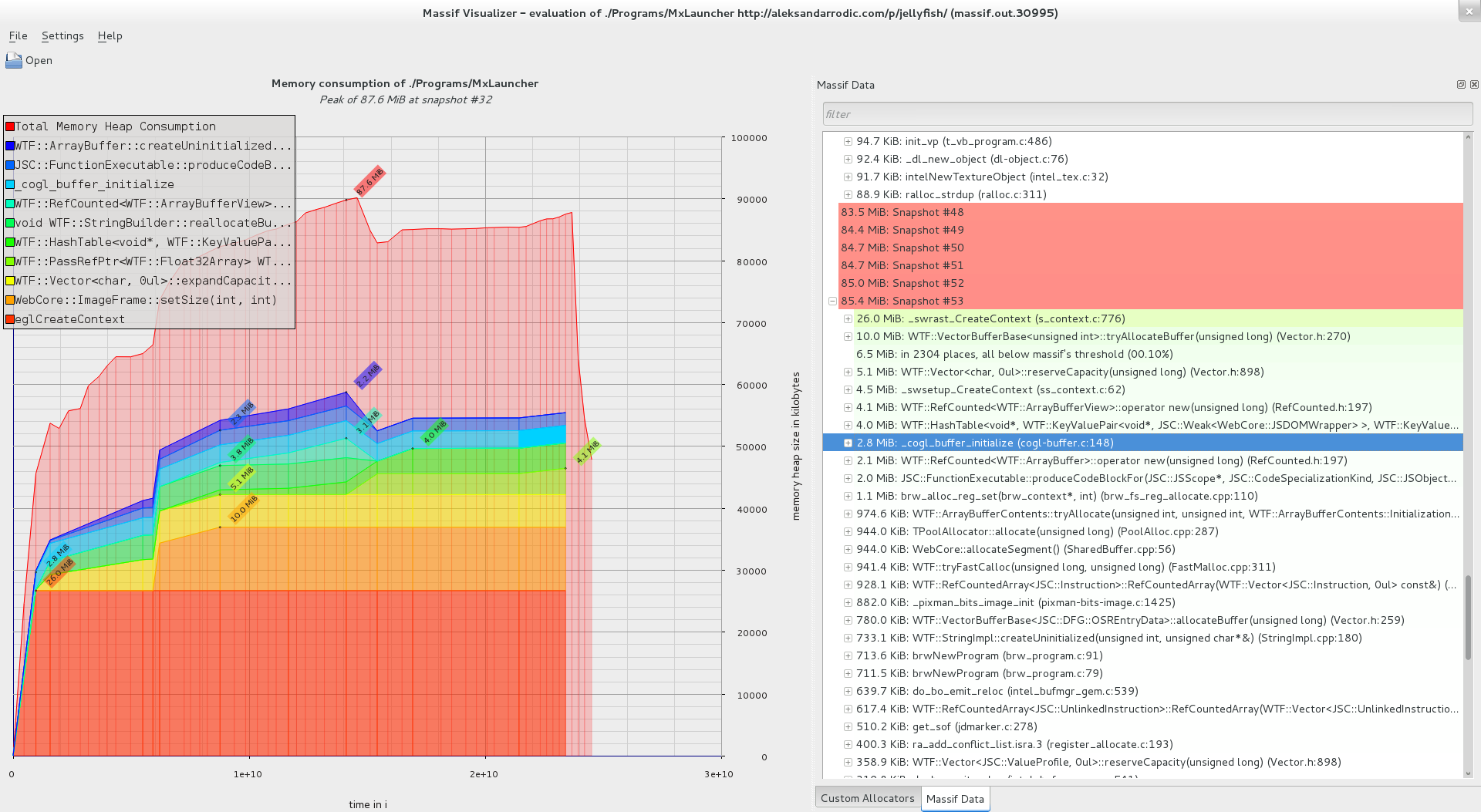

-![<File:Webgl.png>](/images/webgl.png)
-
-This reading comes from loading [this WebGL
-sample](http://aleksandarrodic.com/p/jellyfish/). The memory allocated
-by the GL stack is bigger in this case because a different platform was
-used (EGL instead of GLX). Also of note, the light blue area is memory
-used by the tiled backing store tiles, which did not show up before. The
-big orange area represents memory allocated for the images used as
-textures in the WebGL sample. As discussed before, the internal memory
-cache used by WebKit to store the decoded images will be looked into in
-more detail later in this document.
-
-# Memory Cache
-
-WebCore has a memory cache that it lays on top of the disk cache, to
-serve resources even faster when necessary. There is also what is called
-the page cache, which keeps a number of pages that have been visited
-parsed and laid out for a very fast load when the back button is hit.
-Note that not all pages benefit from the page cache, there are rules
-that dictate the cacheability of a given page. The cache sizes can be
-customized and they can be disabled as well. Investigation was performed
-loading the following image-heavy pages and measuring memory usage with
-massif:
-
-  - <http://twistedsifter.com/2010/03/iguazu-falls-10-incredible-facts/>
-  - <http://twistedsifter.com/2013/04/billions-year-old-fukang-meteorite/>
-  - <http://twistedsifter.com/2013/04/hidden-beach-las-marietas-islands-mexico/>
-  - <http://twistedsifter.com/2013/04/top-25-pictures-of-the-day-2013/>
-  - <http://twistedsifter.com/2013/04/lego-builder-creates-200000-piece-fantasy-world/>
-  - <http://twistedsifter.com/2013/04/2012-wikimedia-commons-picture-of-the-year-winners/>
-

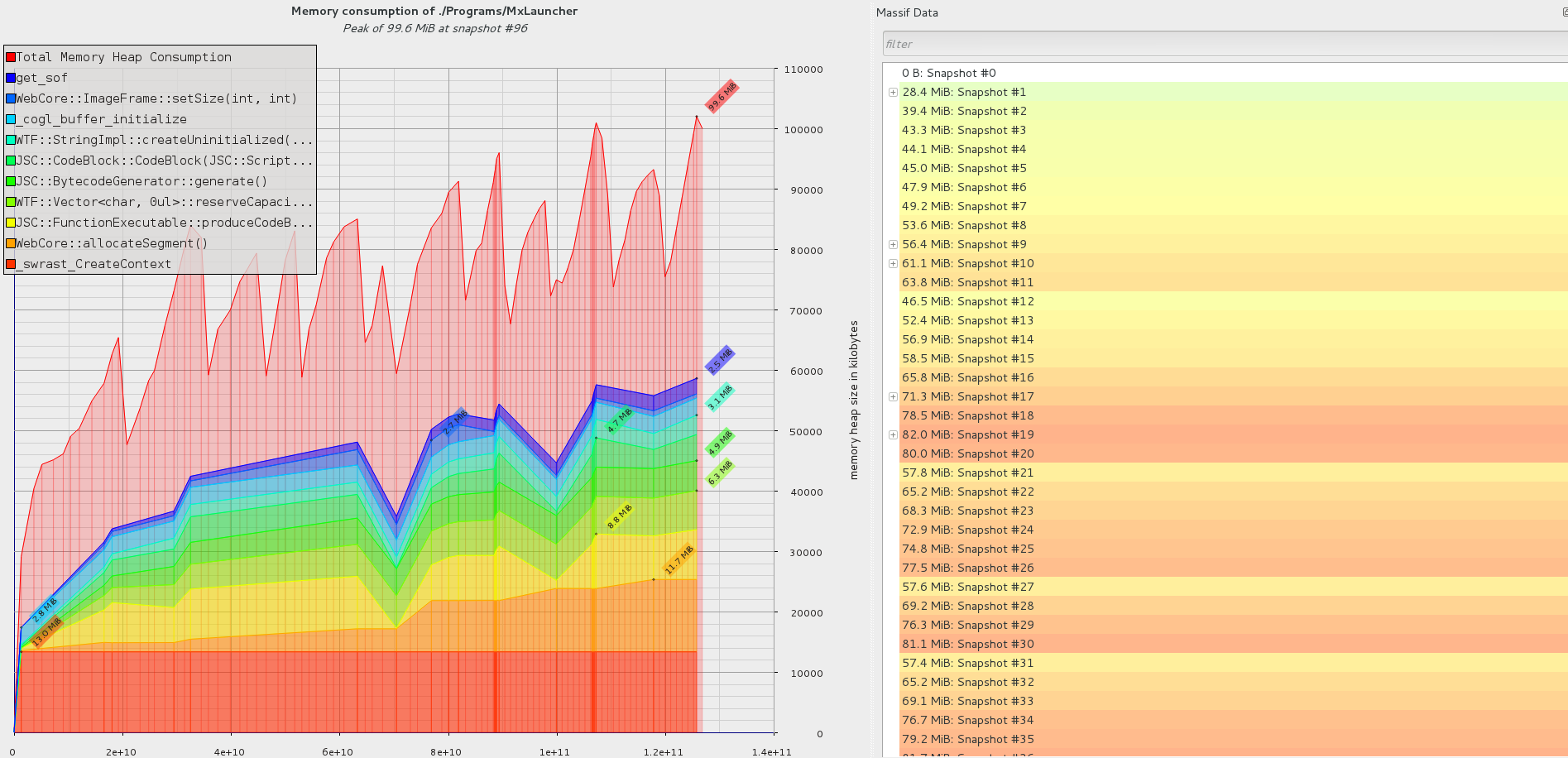

-![<File:Caches-enabled.png>](/images/caches-enabled.png)
-
-The above reading comes from loading all those pages with the cache
-enabled. The resulting graph shows memory usage keeps growing, and we
-end our measurement with a few kilobytes short of a 100MB heap cost,
-with 60MB being used.
-

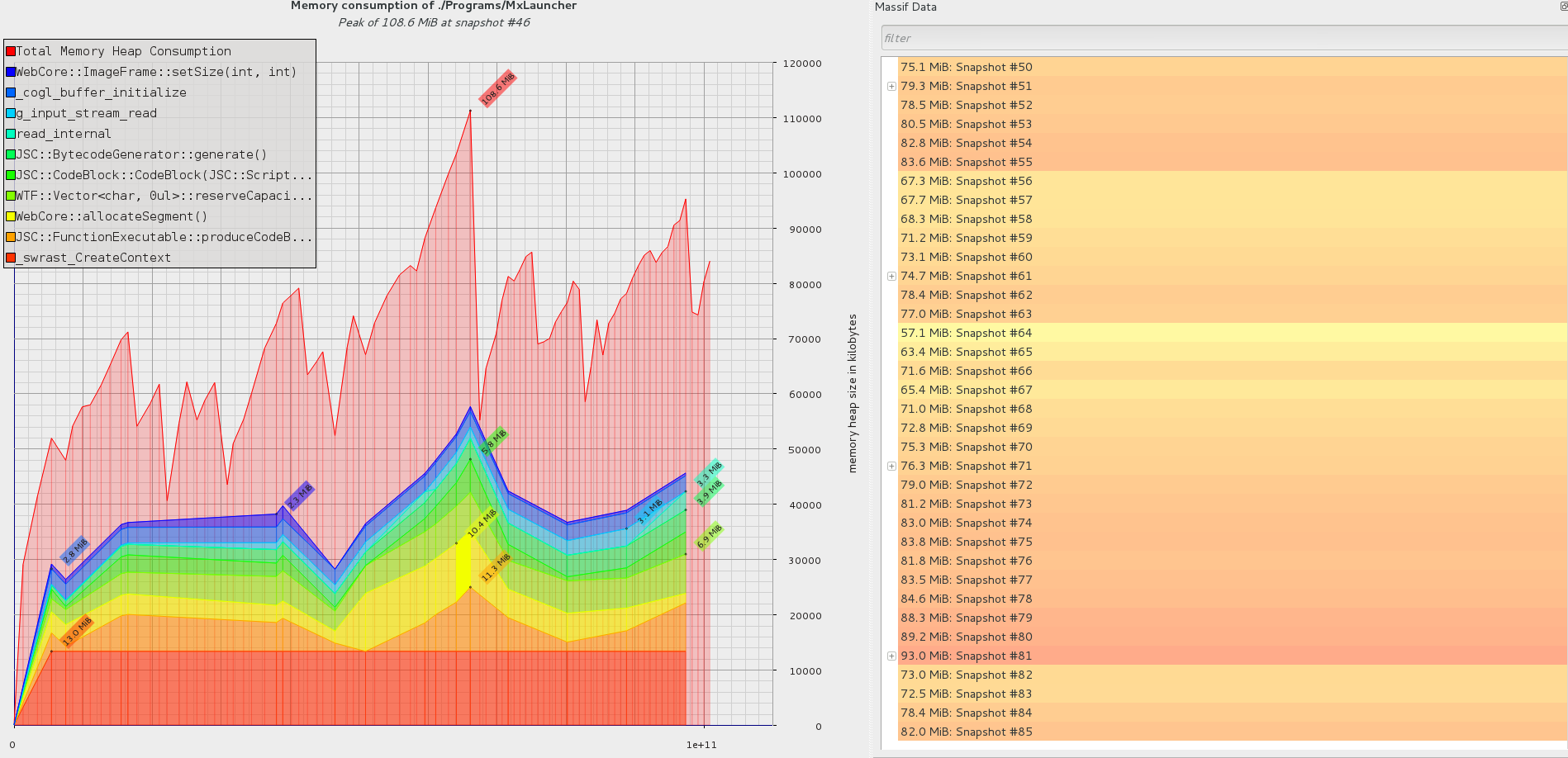

-![<File:Caches-disabled.png>](/images/caches-disabled.png)
-
-The second reading shows a peak that is very similar to our reading with
-caches enabled, but that memory is quickly reclaimed partially, and the
-final measurement shows around 93MB heap cost, with about 46MB being
-actually used. That's a bit more than 20% saved by disabling the caches.
-Although the heap cost is not that much lower, the savings on live bytes
-would already represent a better chance of not triggering swap for pages
-that are actually being used.
-
-# SVG
-
-SVG is a big chunk of code in WebKit, and disabling it represents
-savings of around 15% in binary size, and around 12% less internal
-symbols for the library. While this also represents small savings in
-terms of memory usage, load time and symbol resolution time are the main
-ones to benefit. Code size being smaller may also help with cache
-efficiency. While SVG is one of the features that people relate to the
-modern web, its actual usage has been very limited up to now. Most
-mobile OSes today seem to enable SVG on their WebKit, but disabling it
-is an option that may be considered.
-
-# Proposed Actions
-
-WebKit Clutter provides the *webkit_set_cache_model* API to let
-applications specify what kind of usage patterns they have. Setting the
-cache model to **WEBKIT_CACHE_MODEL_DOCUMENT_VIEWER** disables both
-the page cache and the memory cache. Although the more conceptually
-correct choice would seem to be **WEBKIT_CACHE_MODEL_WEB_BROWSER**,
-Collabora recommends adopting the document viewer cache model for the
-Apertis browser, given the results above. This cache model should also
-be adopted for the web runtime.
-
-Collabora also recommends disabling the media preload completely. Given
-the preload attribute is just a hint that does not need to be honored by
-the user agent, it makes sense to avoid any memory pre-buffering on
-memory constrained devices such as Apertis. Collabora added a new
-*enable-media-preload* setting to WebKitWebSettings that can be set to
-FALSE to disable preloading of media completely.
